Outdoor Light SeriesYour position: Home > Outdoor Light Series
Search color light
- Product description:
Product introduction

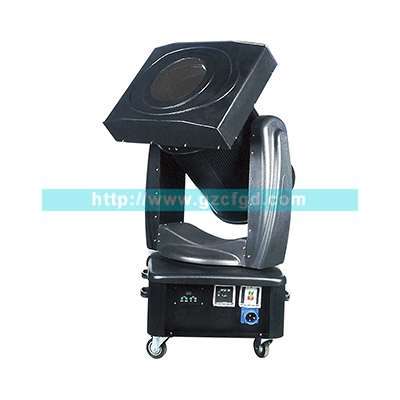

2KW-7KW CMY Moving Head Sky Search LightVoltage:AC110V/220V/380V 50/60Hz
Power Consumption: 2500AW/3500W/4200W/7500W
Lamp: XQ2KW/3KW/4KW/7KW
Lifetime of the lamp:1000hours
Waterproof:IP54
Special reflector, Maximum brightness efficiency
PAN:540° With light sensitive rectify function and restoration AUTO
PAN Fine adjustment:5.4°fine adjustment, position accurately
TILT:270°With light sensitive rectify function and reposition AUTO
TILT Fine adjustment:5.4°fine adjustment, position accurately
White color + CMY color changing system=multi colors
Beam distance can reach to 2-7km
Control Mode: Work Auto,Master/Slave,DMX512
Size: 700*790*1430mm 4-5KW
Packing Size: 860*770*1600mm
LED Control panel
Channels details:
Ch01:PAN scan (0°-350°)
Ch02:PAN scan adjustment fine16BIT
Ch03:TILT scan (0°-270°)
Ch04:TILT scan adjustment fine 16BIT
Ch05:PAN& TILT scan speed
Ch06:Switch lamp/light restoration
Ch07:CMY Color+lambency speed adjustment
CH08:cyanine Ch09:Red Ch10:Yellow
Ch11:Lambency changing gradually
Ch12:Dimmer/Strobe
